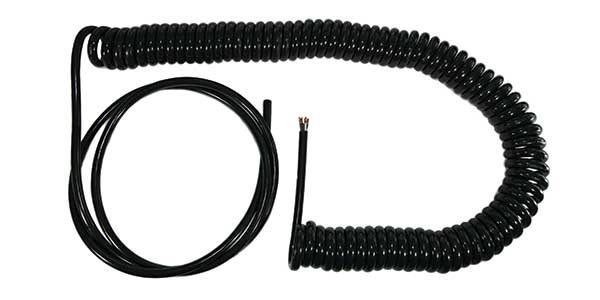

Coiled Light Tower Cords
- Glossy Black Jacket
- Superior Coil Memory
- Outdoor & Indoors
- UL, CSA, Mil Spec Standards
- Dupont’s Hydrel Jacket
Other Designs Available Upon Request. (Complete Custom Coil Form)
Product Specification
Coiled Cables 600 Volts UL & C-UL APPROVED
| APPLICATION: | Heavy duty service – outdoors or indoors for construction, oil, and military portable lighting. |
| FEATURES: | Long Coil Life: will not lose coil memory after long periods of extension – even after days and weeks. Greater mechanical strength, lighter weight, and resistance to low temperatures, heat aging, abrasion, chemicals, oil, ozone, and water. |
| STANDARDS: | UL, C-UL, and Military |
| TEMPERATURE: | Temperature rating is from -50°C to +105°C. |
| BRANDING: | E98586 Light Tower, UL/CSA, AWM Style 20328, 7 conductors 14 Gauge, 600 volts +105°C to -50°C. |
| JACKET COLOR: | Black. Other colors available upon request. |
| COLOR CODE: | Conductors clockwise sequence: White. Brown, Green, Red, Yellow, Black and (Center) Blue |
28 Gauge Soft Annealed Tinned Copper - Maximum Voltage: 600 Volts
| Part Number | No.of Conds. | Size &
Stranding |
Ins Wall | Jacket Wall |
Retracted length | Maximum Extending length | Straight Ends | Jacket O.D. (Inches) |
Coil O.D. (Inches) |
| TL1407-35 | 7 | 14 Ga. (41 x30) | .030 | .060 | 29 inches | 35 Feet | 180″ & 11″ | .550 | 2.42 |
| TL1407-50 | 7 | 14 Ga. (41 x30) | .030 | .060 | 50 inches | 50 Feet | 102″ & 70″ | .550 | 2.42 |
