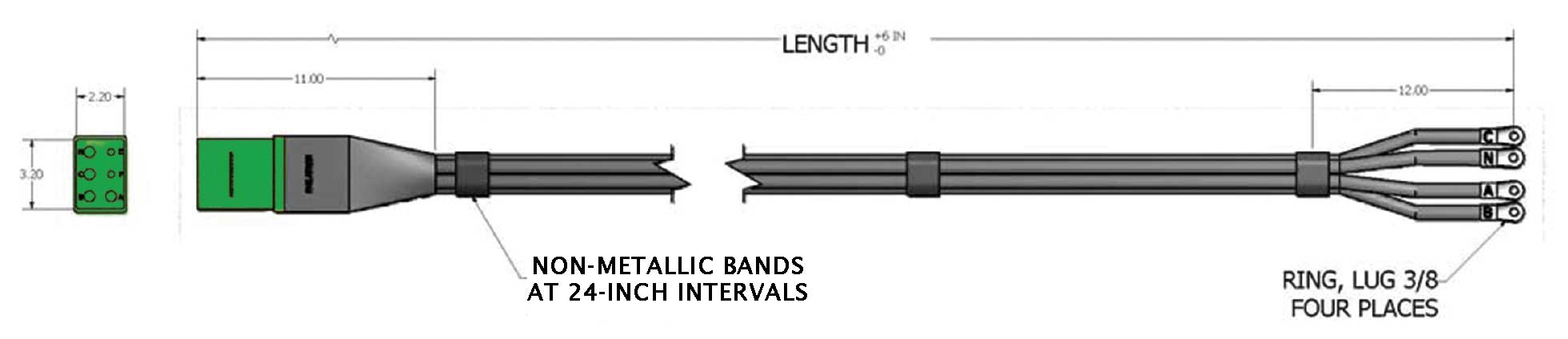

Banded 400 Hz With Replaceable Hard Contact Section


4 Conductors - No Control Leads

  • Neoprene Molded Plug
  • Temperature Rating - +105C (221F) -40C (-40F)
  • Resistant to Abrasion, Aircraft Fuel, Ozone, Oil, Sunlight, & Water

Get A Quote

Airport Ground Support Cables PDF Catalog


Product Specifications

banded-400-hz-with replaceasble hard contact Section
Philatron
Part No.
Length
Feet
Length
Meters
Type
Designation
Aprox.
WT.
Cable
Configuration
AC4R-1020 20 6.1 4-1/0 AWG
NO CONTROL LEADS
E AND F SHUNTED IN PLUG
SILVER PLANTED CONTACTS
NON-METALLIC BANDS
35 aviation cable configuration description
aviation cable configuration description
AC4R-1030 30 9.14 53
AC4R-1040 40 12.19 71
AC4R-1060 60 18.29 106
AC4R-10100 100 30.48 175
AC4R-2020 20 6.1 4-2/0 AWG
NO CONTROL LEADS
E AND F SHUNTED IN PLUG
SILVER PLANTED CONTACTS
NON-METALLIC BANDS
51
AC4R-2030 30 9.14 73
AC4R-2040 40 12.19 95
AC4R-2060 60 18.29 138
AC4R-20100 100 30.48 205

Replaceable Contact Section Part Number ACR-3430H
