300 Volts EVJE with Copper or Aluminum Shield

Philaflex™ - ULTIMATE FLEXIBILITY


UL Type EVE - 600-1,000 Volts Power

+105°C to -40°C
2 Conductors + Grd & 1 18 AWG Control Conductor

Application: Extra heavy duty service – outdoors or indoors
Features: ULTIMATE FLEXIBILITY, greater mechanical strength, lighter weight, and resistance to low temperatures, heat aging, abrasion, chemicals, flame, oil, ozone, and water.
Standards: Underwriters Laboratories: UL-62 and National Electrical Code: Articles 400 & 625
Temperature: Temperature rating is from +105°C to -40°C
Branding: PHILAFLEX™ EV Cable 3 Conductors (size) AWG (UL) 600 Volts +105°C
Color: Black. Other colors available upon request.
Color Code: black, white, green

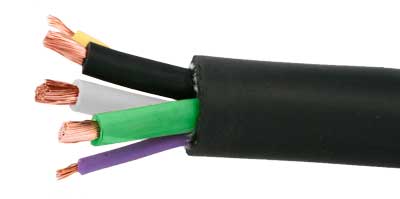

ev cable

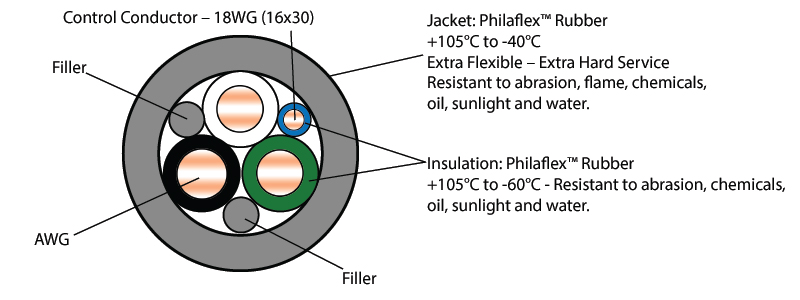

ev cable componets

Part Number AWG Size Number of Conductors Bare Cu Stranding Conductor *Ampacity Nom. O.D.(") Approx Lbs.M/ft
EVE143C 14 2 + Ground 41 x 30 18 .520 142
EVE123C 12 2 + Ground 65 x 30 25 .591 188
EVE103C 10 2 + Ground 104 x 30 40 .644 238
EVE083C 8 2 + Ground 168 x 30 74 .859 380
EVE063C 6 2 + Ground 266 x 30 99 .976 528
EVE043C 4 2 + Ground 430 x 30 130 1.124 745
EVE023C 2 2 + Ground 665 x 30 174 1.274 1039

*Ampacity ratings are on copper conductor temperature at 90 degrees C and ambient temperature at 40 degrees C.
